Easton has turned it up to 11 with their hard-hitting Jazz XX75 aluminum arrow shafts.

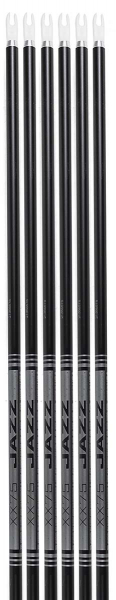

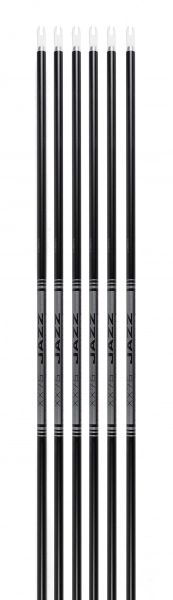

Jazz XX75 aluminum arrow shafts are made from a sturdy 7075 aerospace aluminum alloy coated with a hard-anodized finish. These tough shafts are ready to take on any challenge, whether you're an experienced shooter or a beginner.
Make beautiful music with Easton Jazz XX75 aluminum arrow shafts. Available in 1716, 1816, 1916, and 2016. Sold by the 6-pack.
- 7075 aerospace alloy
- Hard-anodized finish
- Guaranteed straightness: ± .005"
- Weight tolerance: ± 2%
- Strength (psi): 90,000
- Includes (not installed) inserts and Bohning F nock
- Sizes: 1716, 1816, 1916, 2016
| Spine | Point | GPI | Length | O.D. | Insert | Nock |
| 1716 | 9/32" | 9.0 | 29" | .266" | 10 gr | F Nock |
| 1816 | 9/32" | 9.3 | 30" | .281" | 12 gr | F Nock |
| 1916 | 5/16" | 10.0 | 31" | .297" | 16 gr | F Nock |
| 2016 | 5/16" | 10.6 | 32" | .312" | 20 gr | F Nock |
| Straightness ±.005" Weight ±2% | ||||||
Services Available Any service requested may delay shipment. Items with services applied are non-refundable.
Cut Shafts to Length: Have your carbon arrows cut to length. The length is measured from the valley of the nock to the end of the shaft. Minimum length is 27". Tolerance for cut length is ±1/16".
Install Point Inserts: Choose this option to have our experts install your Point Inserts in your shafts. We use epoxy style adhesives on all inserts and most points. Once they are installed, they are permanent. If you want us to use different inserts or adapters (i.e. brass point inserts), please put a comment on your order during checkout referencing what item numbers to use together.
Standard Fletch: Our experienced fletchers will 3-fletch your arrow shafting with 5" shield left wing turkey feathers. The cock feather will be traditional barred and the two hen feathers will be your choice of white, yellow, red, or fluorescent lime (same color for all arrows). Hen feather color can be requested and will be fletched on a CLEAR cap wrap. No substitutions. Allow 4-7 additional business days for your order to be processed.
If you prefer to customize your shaft with additional options, please use our Arrow Builder
