When Easton and Eichler put their minds together, great things happen! Easton has given their powerful Carbon Legacy arrows a smaller .204" Micro X diameter for increased kinetic energy and deeper penetration.
Carbon Legacy™ 5MM Fred Eichler Edition carbon arrows preserve the wood grain look of traditional archery arrows, but adds state-of-the-art performance with carbon fiber construction.
Easton Carbon Legacy™ 5MM arrows are installed with 5MM X Nocks, with 16 grain 5MM HIT inserts, insert tool, chamfer stone, and epoxy adhesive included.

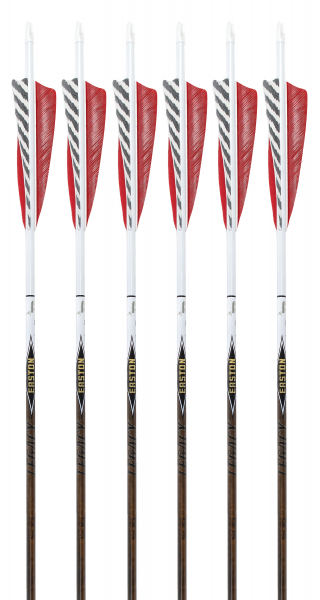

Easton Carbon Legacy™ arrows are pre-fletched with 4" left wing shield cut feathers on a high-visibility Fred Eichler arrow wrap for easy arrow retrieval and easy re-fletching. The cock feather is traditional barred, while the hen feathers are either red, yellow, or white, with all hen feathers the same color per pack. All fletchings are helical mounted for increased stability and accuracy.
Enjoy accuracy,stability, strength, and tradition with Easton Carbon Legacy™ 5MM arrows!
Sold by the 6-pack. Available in 340, 400, 500, 600, and 700 spines. Please specify.
See Easton Carbon Legacy™ 5MM Arrow Shafts
See Easton Carbon Legacy™ 5MM Bare Shaft Test Kit
- 5MM X Nocks installed
- 5MM 8-32 HIT inserts included
- Constructed of high-quality carbon fiber
- Realistic wood grain finish with a high-visibility Eichler arrow wrap
- Pre-fletched with left wing helical mounted 4" shield cut feathers
- .204" Inside Diameter
- Straightness ±.003"
Easton Carbon Legacy™ Carbon Arrow Specifics
| Spine | Point | GPI | OD | Length | Insert | Nock | Carbon Collar |
| 340 | 9/32" | 9.8 | .272 | 34" | 5MM 8-32 HIT | 5MM X Nock | G |
| 400 | 9/32" | 8.8 | .269 | 34" | 5MM 8-32 HIT | 5MM X Nock | F |
| 500 | 9/32" | 8.0 | .261 | 34" | 5MM 8-32 HIT | 5MM X Nock | -- |
| 600 | 9/32" | 7.1 | .258 | 34" | 5MM 8-32 HIT | 5MM X Nock | E |
| 700 | 9/32" | 6.8 | .251 | 34" | 5MM 8-32 HIT | 5MM X Nock | -- |
| Straightness ±.003" Weight ±2 | |||||||
